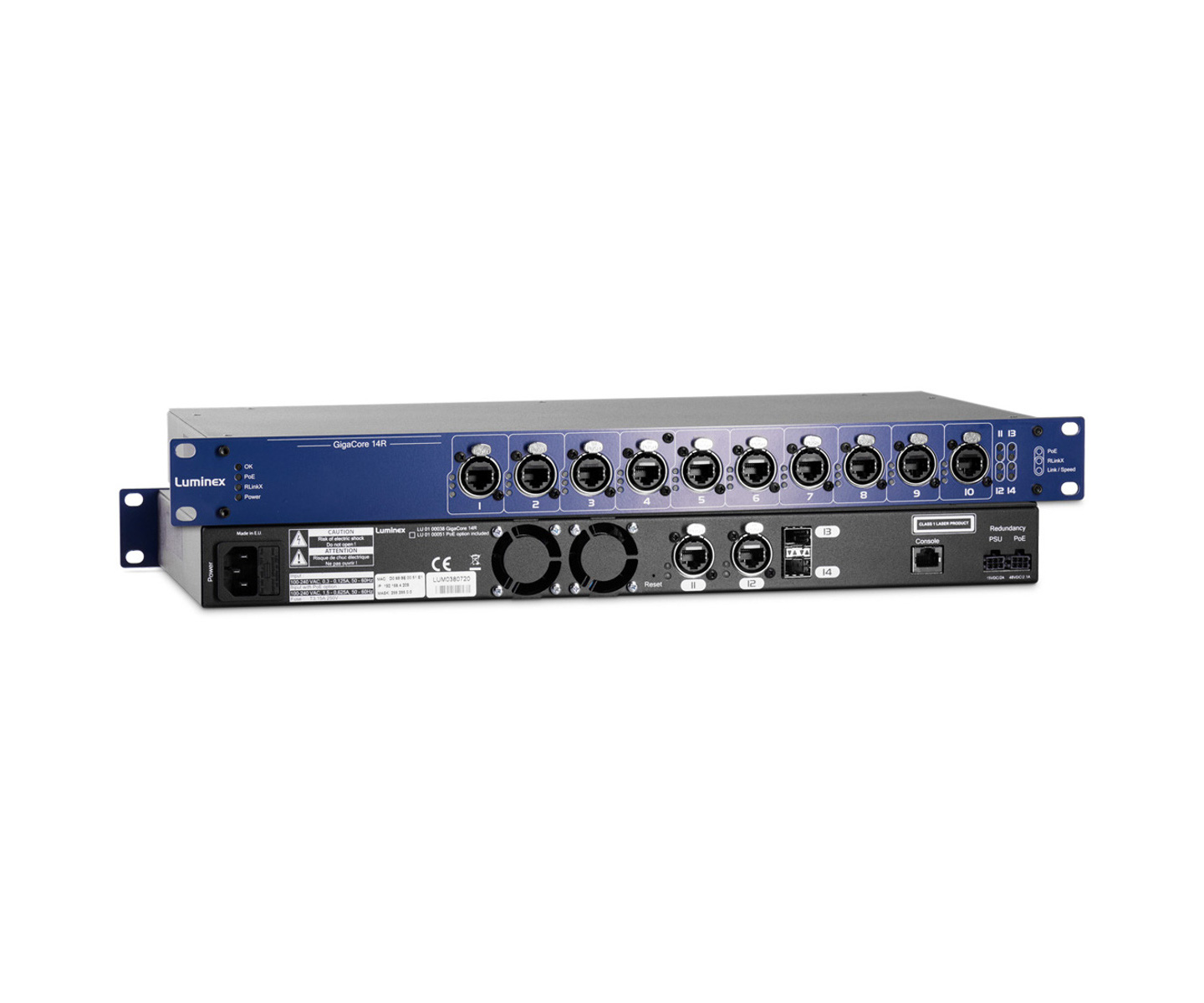

GigaCore is a range of AV Ethernet switches designed to cope with the most demanding AV installations. From tour to installation, GigaCore offers a reliable and user friendly platform, to transport all light, audio and video IP protocols without the need of IT configuration.

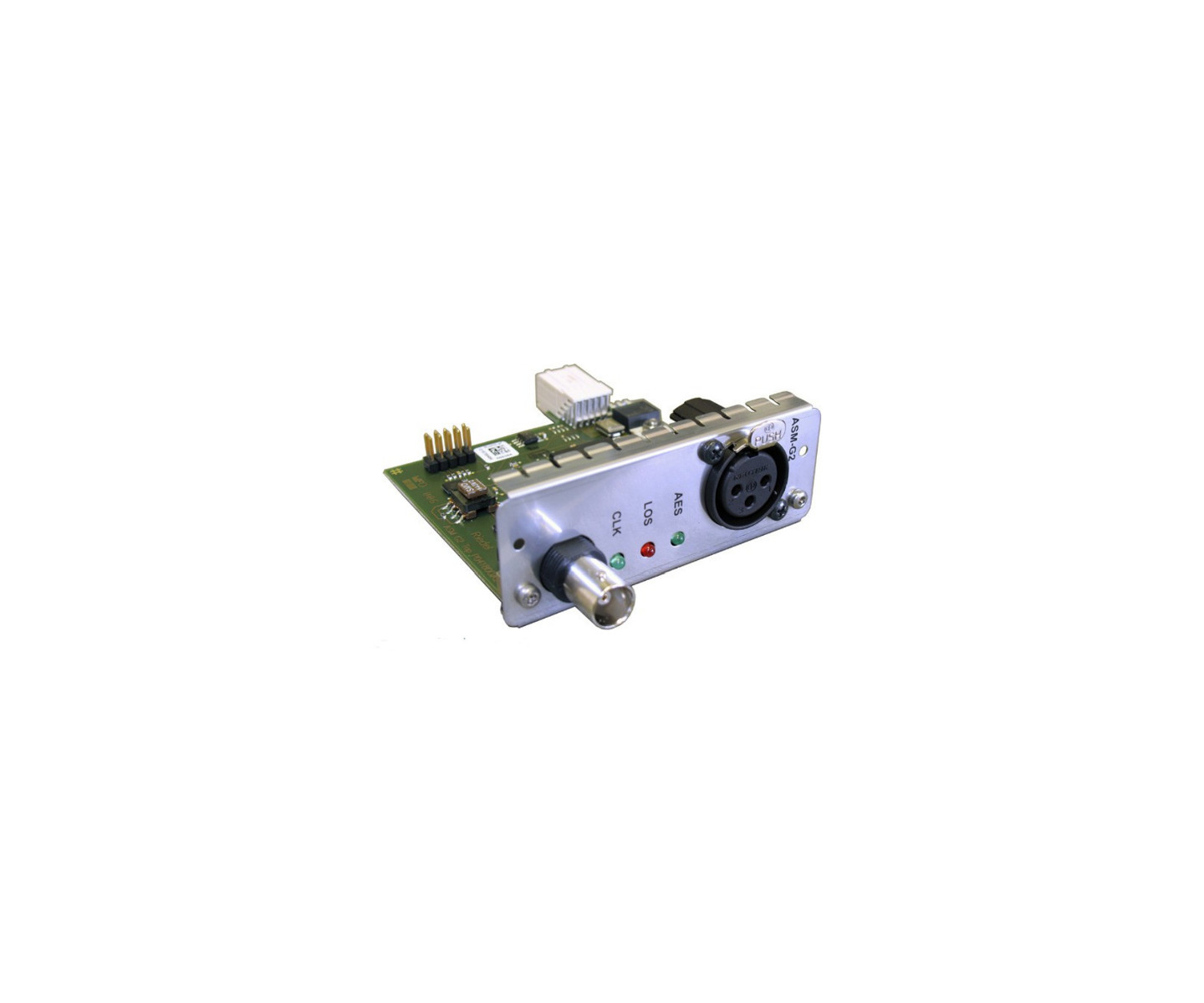

The ASM is used to synchronize the system to an external AES or 48 kHz signal. Therefore the AES sync signal can be connected to the XLR 3-pole female plug. A 48 kHz square signal can be connected to the BNC jack.

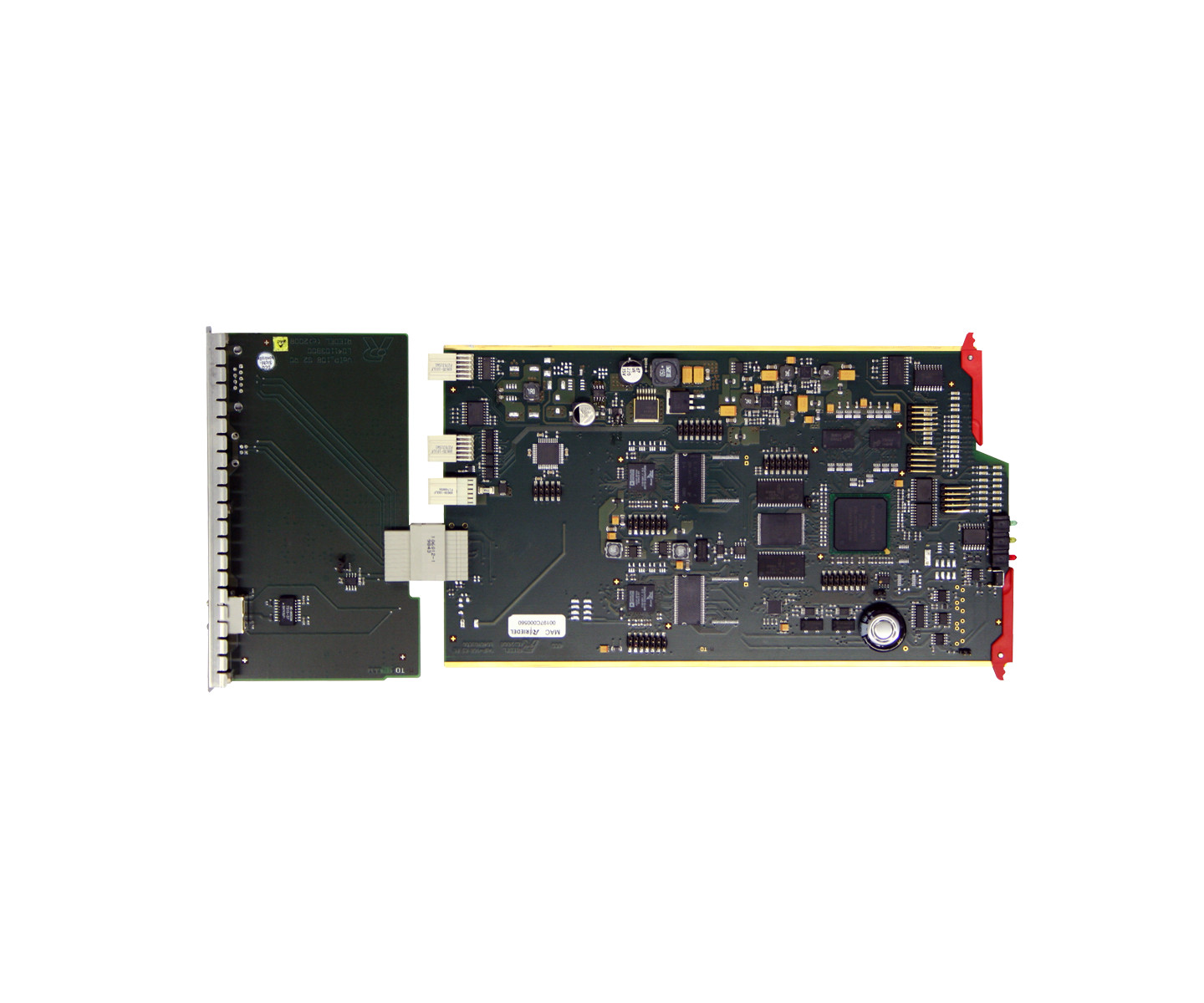

The VoIP-108 G2 client cards are used to connect panels and accessories as well as 4-wire Audio to the matrix. Each card provides 8 individual addressable, bidirectional ports. It is 10/100 Mbit/s compatible and provides the Auto MDIX functionality.

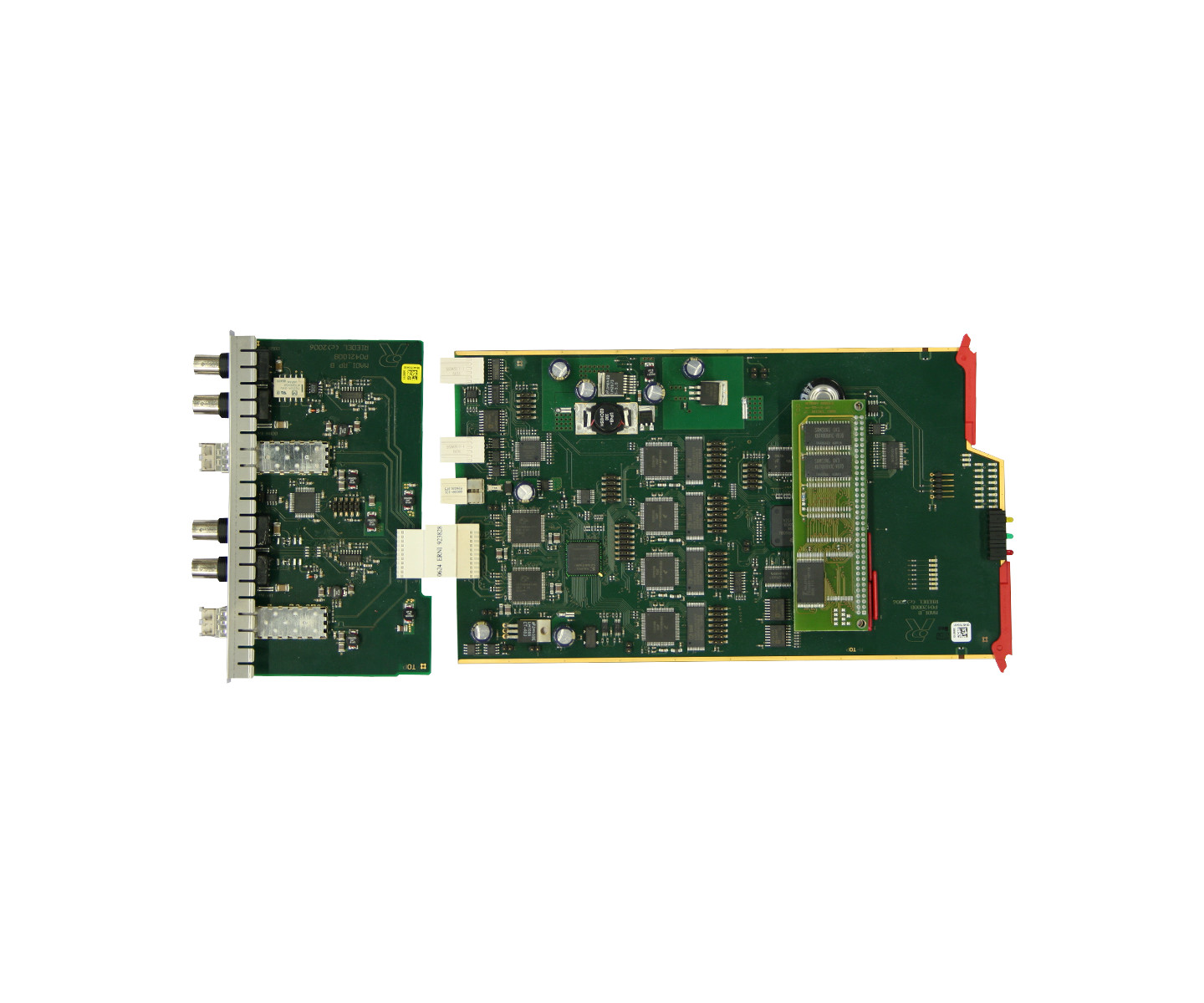

The MADI card is used to interface Artist systems to other MADI equipment. Each MADI card supports up to 8 mono channels. Each port can be used to connect one panel or 4 panels in two-channel mode.

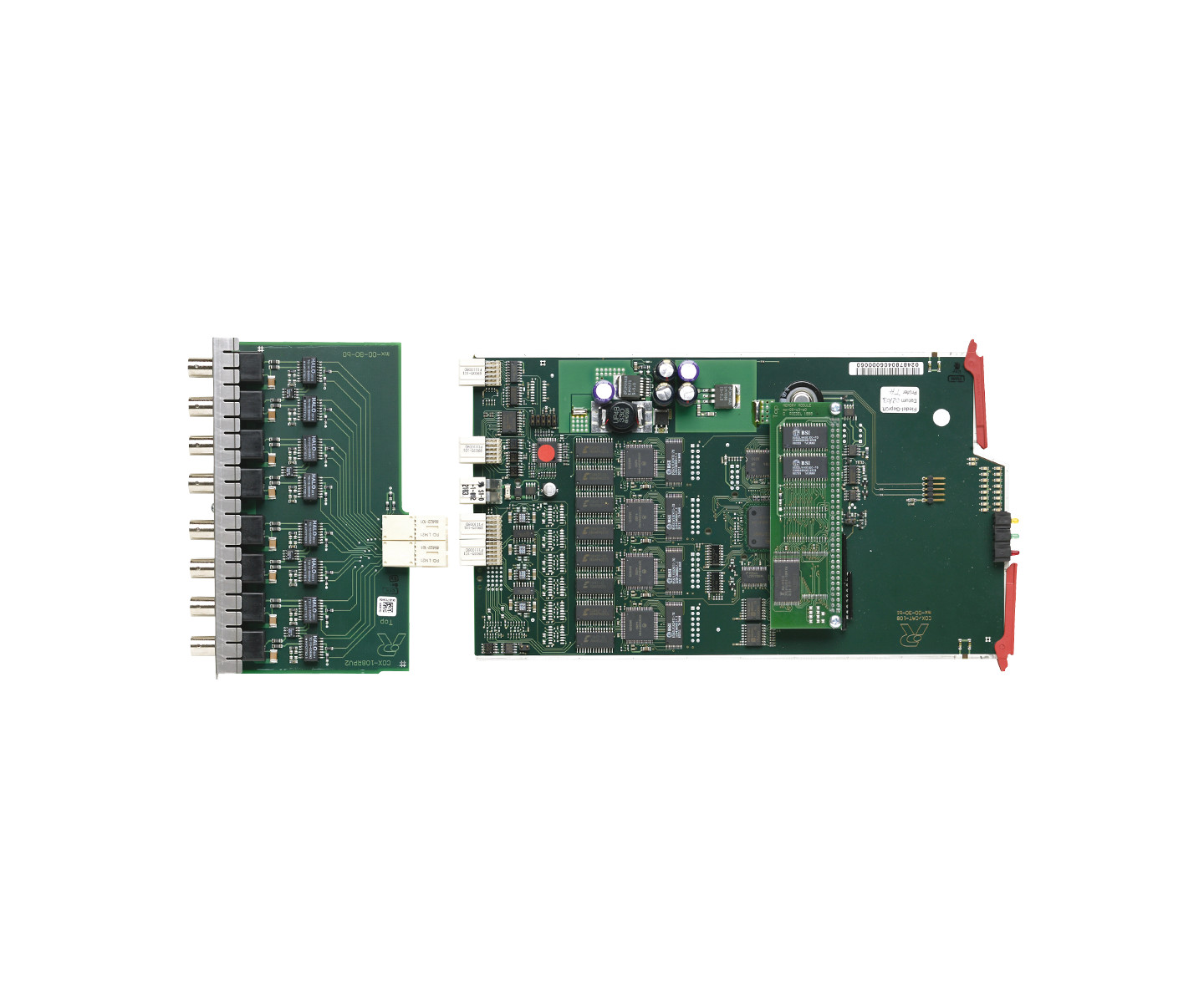

The COAX 108 G2 client cards are used to connect panels and accessories (CIA, PMX) to the matrix. Each card provides 8 bidirectional ports.
The CAT5 108 G2 client cards are used to connect panels or synchronous digital AES/EBU3 audio signals @ 48kHz. Each card provides 8 mono inputs and 8 mono outputs.

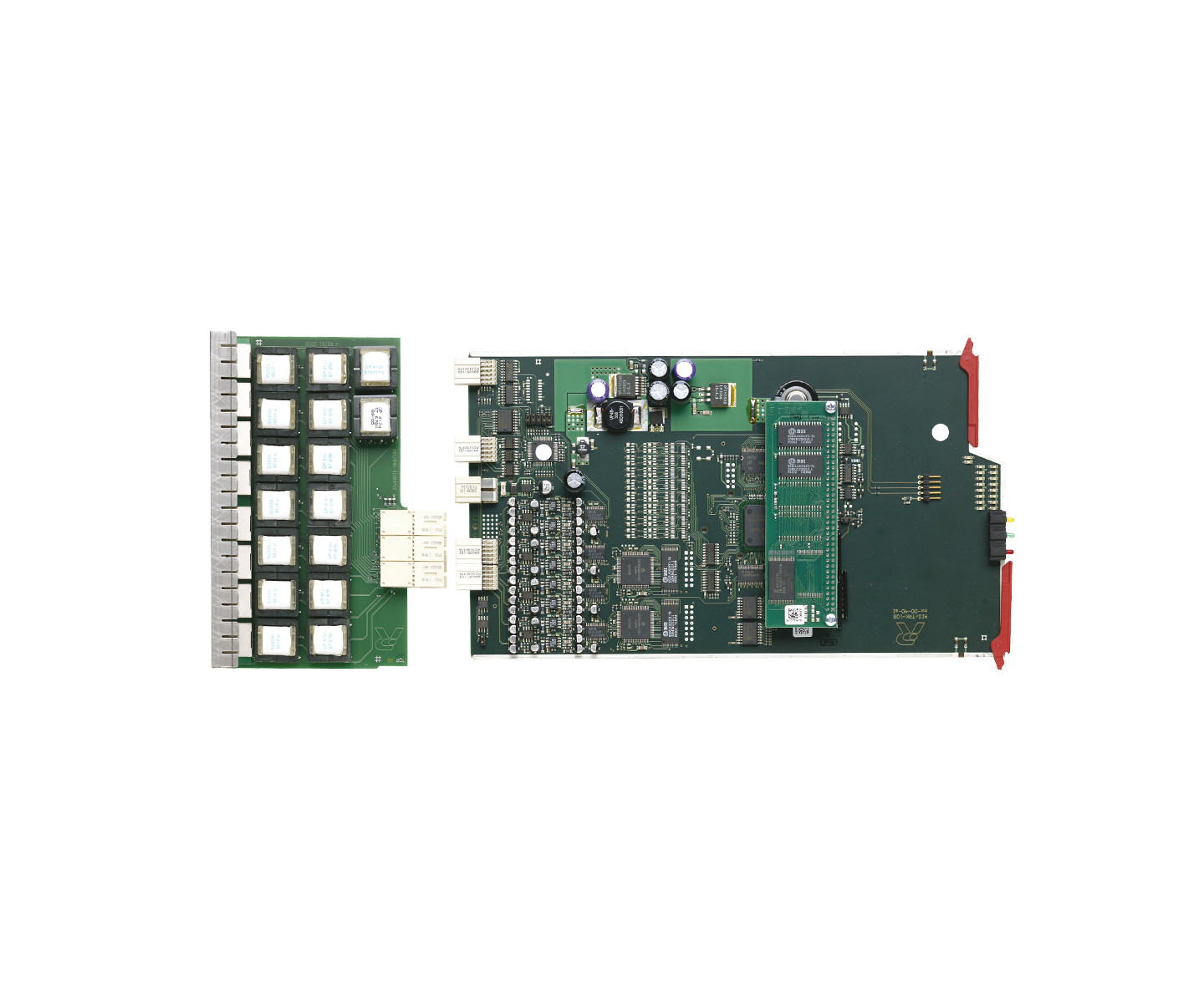

The AIO- 108 G2 client card is used to connect analogue audio signals to the matrix. Each card provides 8 mono inputs and 8 mono outputs.

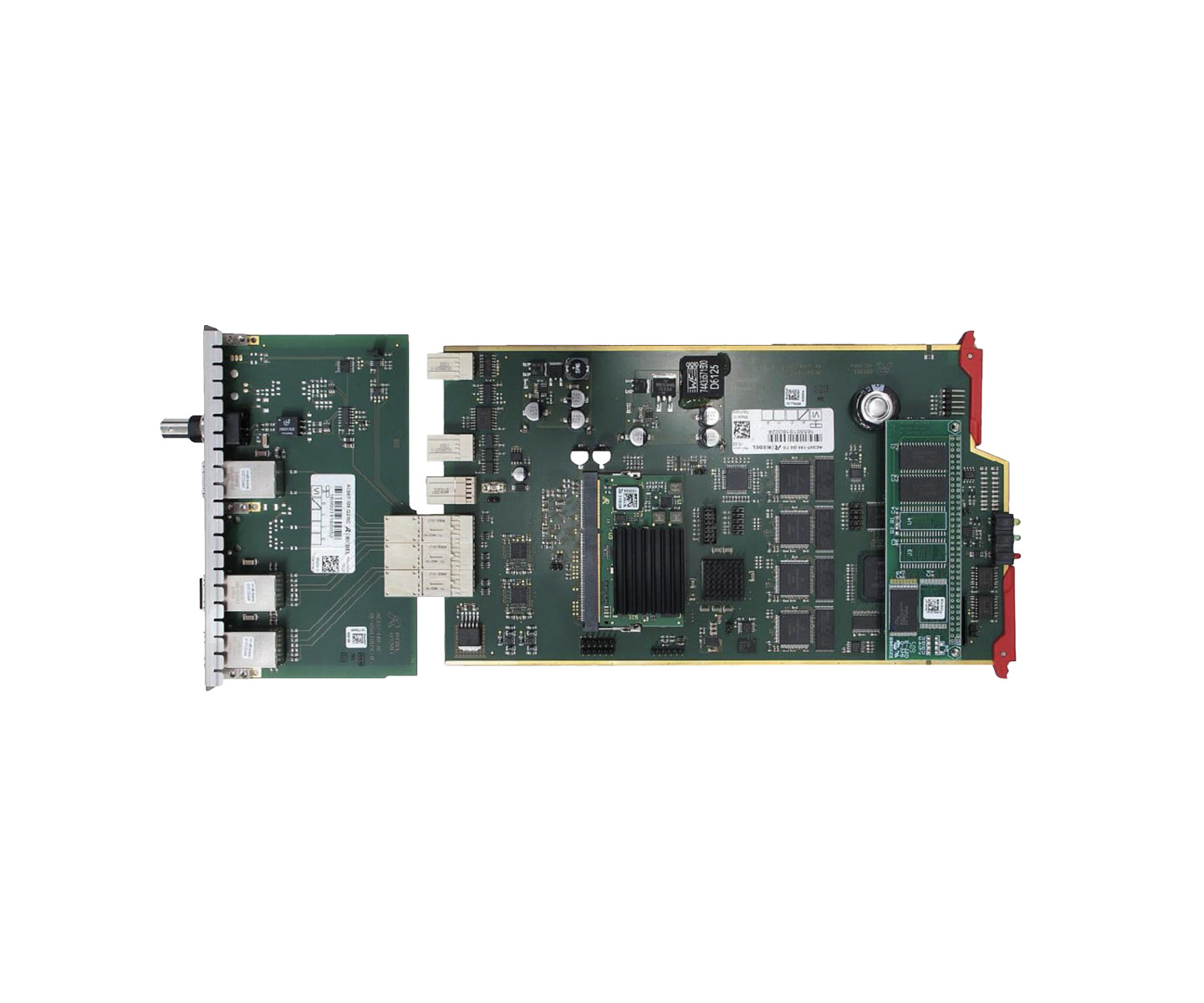

The AES67-108 G2 is an Artist client card compatible with all Riedel Artist G2 frames. This add-on card enables users to take advantage of AES67 audio networks. The card features eight independent AES67 connections to service multiple devices.

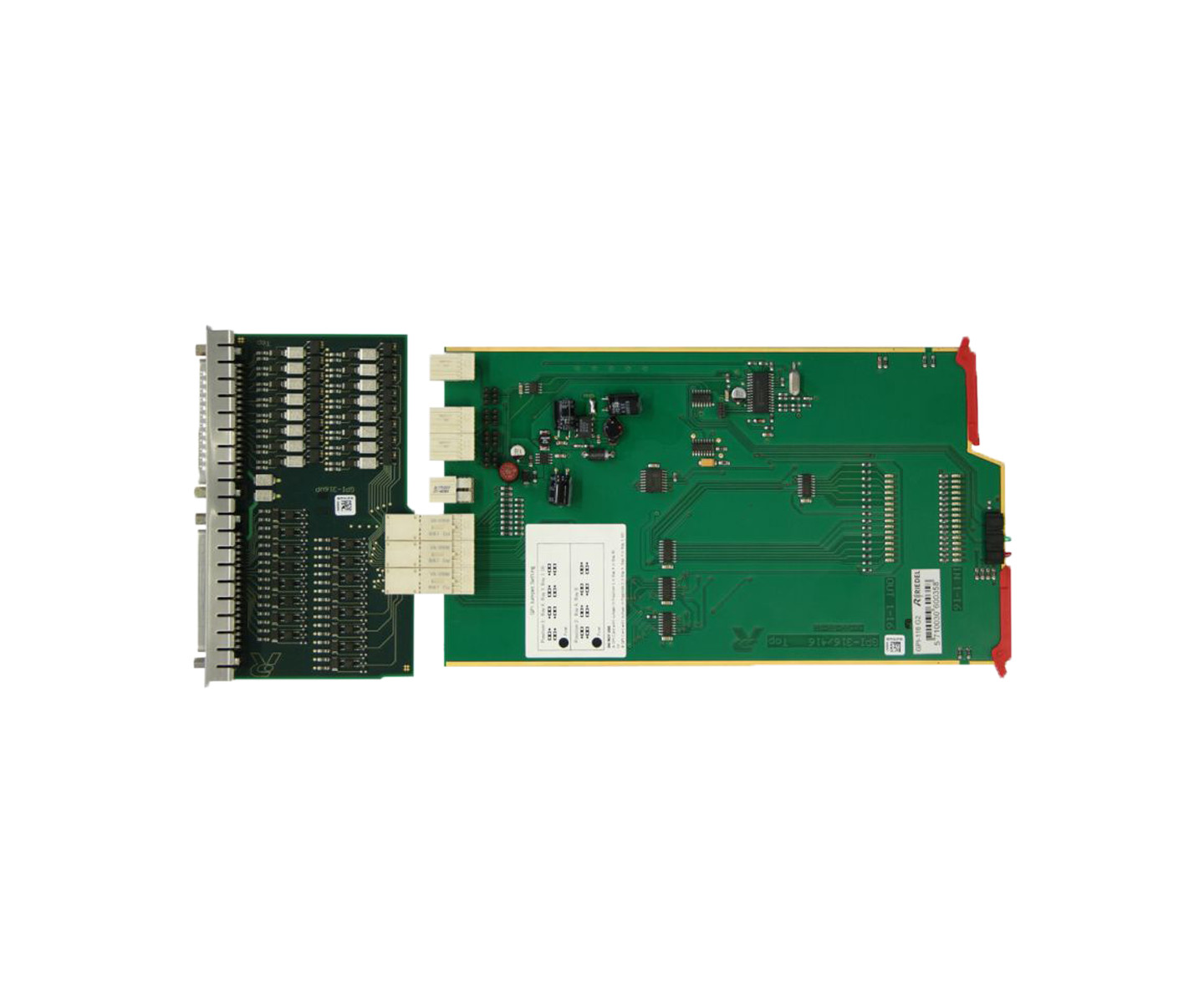

The General Purpose Interface (GPI) cards are used to receive open/close signals from external switches, relays, e.g. “ON Air” signals. They are also used for switching tasks (e.g. lamps, PTT from transmitters, relays).

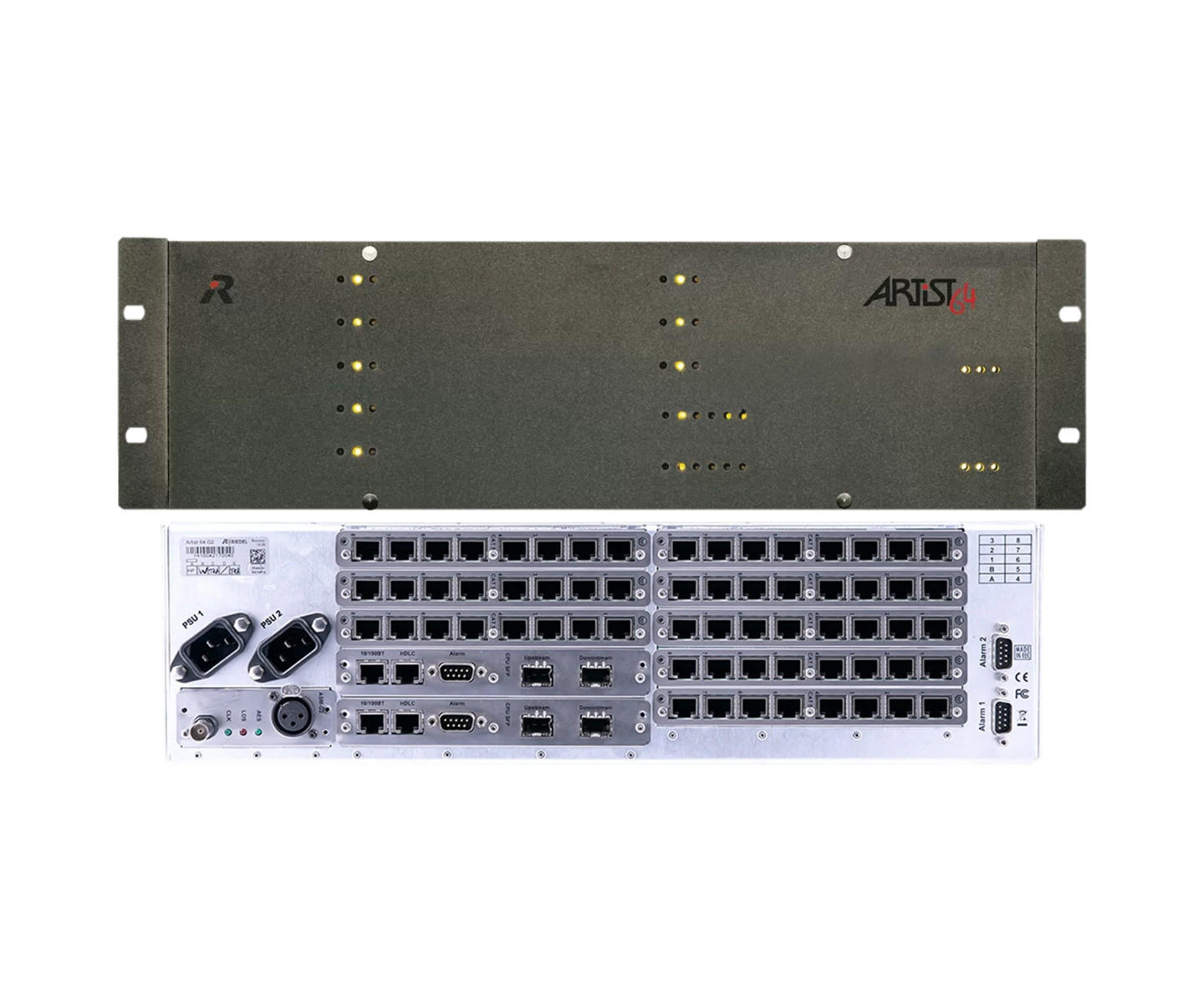

Artist is a decentralized, scalable digital intercom network that provides reliable communications and audio signal distribution for any audio or intercom application.
